Description

Product

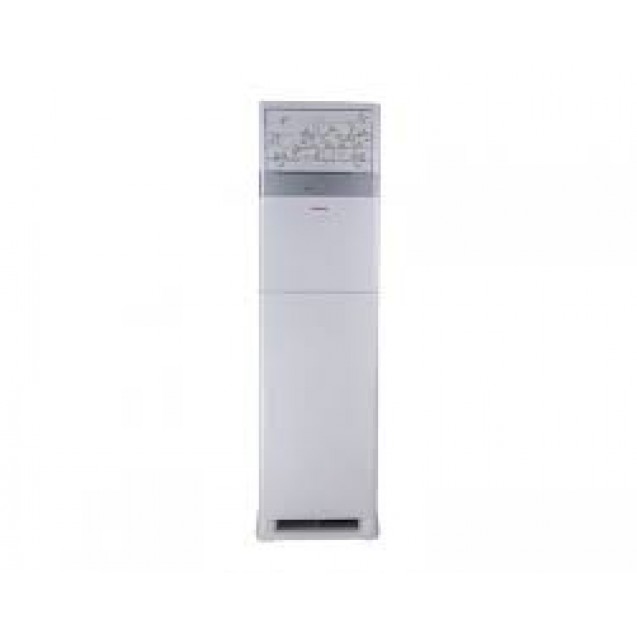

TORNADO Air Conditioner 5HP Cool - Heat

Cooling Capacity : 36000 (BTU/H)/ 10.6 KW

Heating Capacity : 40000 (BTU/H)/ 11.7 KW

Air Conditioner Color : White

Modern Display With Touch Screen

Quiet function

Left and Right airflow swing

Airflow for far distance "Turbo"

the furthest distance up to 15 M

Auto function

Remote control

High performance compressor

Auto restart

4-Way airflow

24 Hours timer

3 Minutes protection

Easy installation

Lock button

Running current ( Cool ) : 17A / 19.5A

Running current ( Heat ) : 18A / 20A

Power supply : 1/ 220-240/ 50 PH/ V/ Hz

Power input ( Cool / Heat ) : 3.7/ 3.8 kw

Start-up current : 76 A

ERR/Cop : 2.86 Btu/h.W/3W/W

Air volume ( High / Medium / Low ) : 1750/- /- M3/h

Noise level ( High / Medium / Low ) :-

Indoor ( cool ) : 42/ 46/ 49 dB/ A

Outdoor ( cool ) : 60 dB/ A

Dimensions :-

Indoor unit : 530 x 380 x 1820 mm

Outdoor unit : 830 x 410 x 1008 mm

Gross weight :-

Indoor : 62 Kg

Outdoor : 95 Kg

Net weight :-

Indoor : 53 Kg

Outdoor : 85 Kg

Piping connection :-

Max pipe length : 30 Meter

Max drop : 20 Meter

Pipe connection length : 5 Meter

Gas piping connection : 19.05 (3/8) mm/inch

Liquid piping connection : 9.52 (3/4) mm/inch

Warranty : 5 Years full free warranty
